MultiVac 301-MB-T: 제품명: MultiVac 301-MB-T; 용도: 진공 여과 매니폴드 시스템; 메이커: Rocker Scientific; 카달로그:

소개
사양
동영상
주문정보

소개

MultiVac 301-MB-T

Vacuum Filtration System

제품 특징 :

◆ Special design for microbiology filtration

MultiVac 301-MB-T are designed for a large number of samples filtration on microbiology test.

Each system includes vacuum pump, manifold, burner, waste bottle and filter.

◆ Innovative vent valve design

An adjustable vent valve integrated with the pipe can eliminate water hammer phenomenon and help drain out

residual waste water.

◆ Quick-Fit hose barb

Detachable hose barb can be connected to either side of the manifold quickly towards the vacuum source.

◆ Individual control valve

Each branch permits individual control.

적용 분야 :

◆ Filtration for microbiology test

◆ Chemical experiment

◆ General laboratory filtration

사양

Specification (110V, 60Hz)

◆ Max. flow rate：37 L/min

◆ Max. vacuum：105 mbar

◆ Waste bottle：4000 ml, made of PPwith drain

◆ Number of branch：3

◆ Filter diameter：47 mm

◆ Funnel capacity：100 ml

◆ Hose barb：ID8 (5/16 inch)

Specification (220V, 50Hz)

◆ Max. flow rate：34 L/min

◆ Max. vacuum： 105 mbar

◆ Waste bottle：4000 ml, made of PPwith drain

◆ Number of branch：3

◆ Filter diameter：47mm

◆ Funnel capacity：100 ml

◆ Hose barb：ID8 (5/16 inch)

Material

◆ Body：SS316

◆ Control valve：SS316

◆ Filter funnel：SS316

◆ Funnel support base：SS316

◆ Handle：Aluminum

◆ Connector：SS316

◆ Vent valve：SS316

동영상

주문정보

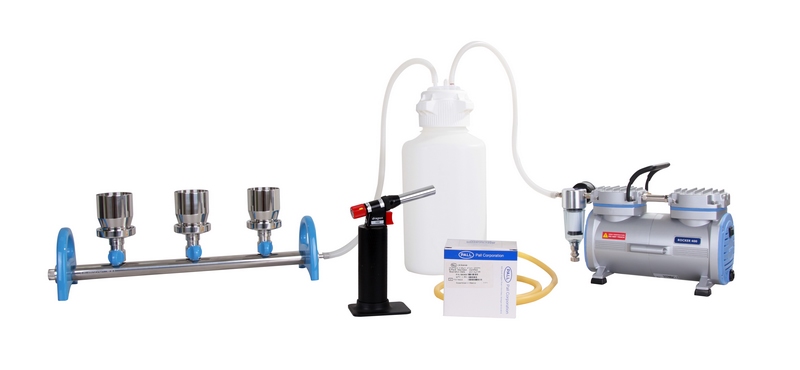

◆ 180300-11-T (22-T) MultiVac 301-MB-T, Vacuum Filtration System, complete set includes :

* Rocker 400, Oil Free Vacuum Pump

* MultiVac 300-MB, 3-Places StainlessSteel Manifold

* 100 ml SF filter funnel, 3pcs

* 4000 ml PP Waste Bottle with drain

* Dragon 100, Torch Burner

* MCE Membrane, 47 mm, 0.45 μm, 200/PK

* Silicone Tube (2m)

◆ 180100-01 100 ml SF filter funnel

◆ 180100-03 300 ml SF filter funnel

◆ 180100-05 500 ml SF filter funnel
