NRicher™ Mx2
제품명: NRicher™ Mx2
용도: General Enrichment for All Biofluids and Tissue Lysates
메이커: Biotech Support Group
카달로그: 다운로드


소개



NRicher™ Mx2

다양한 생체유체 및 조직용해물 농축 키트

NRicher™ 프로테옴 농축을 더 간편하고 다양하게

개인맞춤형 헬스케어를 뒷받침할 새로운 바이오마커에 대한 요구가 증가함에 따라, 최근 수년간 프로테오믹스 분야에서는 다양한 기술 혁신이 이루어져 왔습니다. 그럼에도 불구하고 여전히 몇 가지 중요한 과제가 남아 있습니다. 그중 하나는 동적 범위(dynamic range) 문제로, 고농도 단백질이 저농도의 잠재적 바이오마커 단백질을 가려 검출을 어렵게 할 수 있습니다. 또 다른 과제는 표적 프로테오믹스 워크플로우(targeted proteomic workflows)입니다. 즉, 관심 있는 바이오마커가 이미 알려져 있는 경우에도, 서로 다른 샘플 코호트 간 측정의 효율성과 일관성이 충분히 확보되지 않는 문제가 있습니다. 이는 선택된 바이오마커와 직접 관련이 없는 단백질 및 펩타이드 조성이 샘플마다 달라지기 때문이기도 합니다.NRicher™ 제품군은 이러한 두 가지 문제를 모두 해결할 수 있도록 설계되었습니다.

기술적 차별성

15년 이상 BSG 는 상이한 프로테옴 결합 특성을 갖는 합성 비드 개발 분야를 선도해 왔습니다. 이러한 비드는 이온성, 소수성, 수소결합성, 방향족 및 고분자 기반 특성을 포함하며, 이를 기반으로 한 다양한 파생 제품은 주요 학술지에 다수 인용되며 학계에서 널리 활용되고 있습니다. 최근에는 면역친화법을 대체하기 위한 접근으로, 자기 나노입자에 적용된 코로나 기반 분리 기술이 도입되었습니다. 그러나 이 방법은 특수 장비 기반의 복잡한 워크플로우와 더불어, 여러 비드 유래 서브프로테옴에 대한 개별 LC-MS 분석을 요구합니다. NRicher™ 는 이러한 한계를 극복하여 보다 단순하고 다목적으로 활용 가능한 솔루션을 제시합니다.



NRicher™ 플랫폼은 정밀한 서브프로테옴 농축을 통해 프로테오믹스 워크플로우의 효율성과 생산성을 향상시킬 수 있는 가능성을 제공합니다. 응용 목적에 맞게 설계된 비드 화학을 활용할 수 있으며, 버퍼 최적화와 같은 공정 개선을 통해 워크플로우를 단순화하고 분석 시간을 단축하며 비용 효율성을 높일 수 있습니다. 이러한 개발은 NRicher™ Knowledgebase에 의해 지원되며, 당사는 2025년 2분기부터 NJEDA CSIT Catalyst II Research Grant(USD 40,000)를 확보하여 NRicher™ 비드 화학의 특성 분석을 더욱 가속화하고 있습니다.

또한 각 NRicher™ 비드 화학은 저농도 바이오마커 단백질을 서로 다른 반정량적 LC-MS 신호로 농축할 수 있어, 표적 및 멀티플렉스 프로테오믹스 분석에 유용합니다. 아래에 대표적인 예시들을 제시하였습니다.

면역친화법 비의존적

NRicher™ 비드는 종(species) 특이성에 제한되지 않으므로, 다양한 시료 유형에 폭넓게 적용할 수 있습니다.

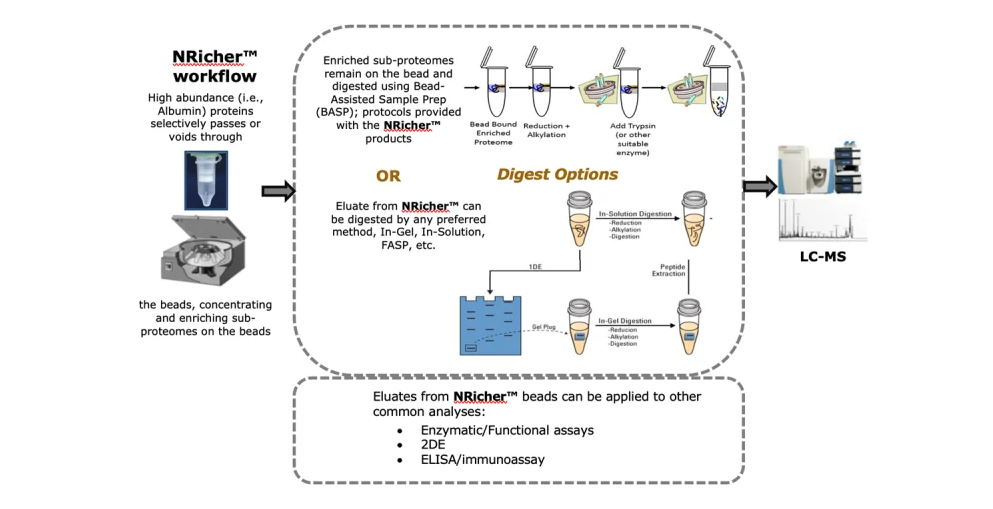

On-Bead Digestion 지원

BSG는 Bead-Assisted Sample Prep(BASP™) 를 선도적으로 개발하였으며, 이를 통해 추가 변성제 없이도 비드에 농축된 서브프로테옴의 LC-MS 분석 워크플로우를 효율적으로 수행할 수 있습니다.
높은 비용 효율성

고가의 특수 장비가 필요하지 않으며, 일반적인 실험용 마이크로원심분리기만으로도 쉽게 적용할 수 있습니다.
2,000종 이상 혈청 단백질 기반 데이터

혈청 및 혈장 시료에서 표적 단백질 마커 분석과 정량적 단백질 분석을 효과적으로 지원합니다.
간소화된 분석 워크플로우

비드 칵테일을 활용하여 다양한 응용 분야를 지원하며. 최소 25μL 의 소량 시료부터 분석이 가능합니다.
다양한 프로테오믹스 분석 플랫폼과의 호환성

NRicher™ 는 분리 후에도 단백질의 기능적 활성을 유지할 수 있어, 기능 분석, 효소 분석, 면역 분석 등 다양한 후속 분석에 폭넓게 활용될 수 있습니다.
NRicher™ Mx2

다양한 생체유체(All Biofluids) 및 조직 용해물(Tissue Lysates) 농축

NRicher™ Mx 는 조직 용해물로부터 다양한 생체유체에 이르기까지 폭넓은 시료 유형에 적용할 수 있는 범용 농축 제품입니다. 특히 저농도 단백질의 농축에 효과적이며, 세포 기능에 중요한 역할을 하고 치료 표적으로도 주목받는 막단백질의 분석에 유용합니다.



주요 기능
· 세포 내외부 환경 간 정보를 전달하는 수용체
· 세포 접착(Adhesion)
· 세포 내로의 분자 및 이온 수송



NRicher™ Mx2는 혈청/혈장에서 막 단백질을 2~3배 수준으로 효과적으로 농축하며, 이들 중 대부분은 비농축 혈청(neat serum)에서는 관찰되지 않습니다.

막 단백질의 순환성 가용형(soluble form, 예: sCD163)은 염증성 질환 및 암의 잠재적 바이오마커로 보고되고 있으며, 개인 맞춤형 헬스케어를 위한 중요한 바이오마커 자원이 될 수 있습니다. 또 다른 예로, 파킨슨병의 바이오마커인 α-시누클레인(α-Synuclein)은 NRicher™ Mx2를 통해서는 관찰되지만, 비농축 혈청에서는 검출되지 않습니다.





주문정보

Product Size Total serum/plasma samples processed Item No.
NRicher™ Mx2 10 Preps 10 preps × (2–4 mg total protein samples) NIMX2-10
NRicher™ Mx2 50 Preps 50 preps × (2–4 mg total protein samples) NIMX2-50

관련자료

Highlightsfrom Biotech Support Group Exhibiting at World Human ProteomeCongress

BiotechSupport Group (BSG) exhibited at the 2025 World Human Proteome (HUPO)Congress, November 9-13, 2025 in Toronto Canada. NRicher™Beads – for targeted serum proteomic biomarker enrichment,simplified and diversified workflows. The NRicher™Knowledgebase, for bead enrichment of user-selected targets



New Jersey Commission On Science,Innovation And Technology Phase II Catalyst Research Grant Awarded toBiotech Support Group

BiotechSupport Group announces receipt of a NEW JERSEY COMMISSION ONSCIENCE, INNOVATION AND TECHNOLOGY Phase II Catalyst Research Awardof $40,000. TheResearch Award entitled “ Evaluatingthe NRicher™ Bead Platform for Targeted LC-MS Quantification” will be conducted at The Rutgers Biological Mass SpectrometryFacility. This award follows from the Catalyst Phase I Awarddemonstrating simple workflows that generate low abundance enrichmentof sub-proteomes suitable for quantitative plasma proteomics.


SwapnaLS, Stevens GC, Sardinha-Silva A, Hu LZ, Brand V, Fusca DD, et al.(2024 )ToxoNet: A high confidence map of protein-protein interactions inToxoplasma gondii. PLoSComput Biol 20(6):e1012208. https://doi.org/10.1371/ journal.pcbi.1012208

Thearticle states we used affinity beads (NuGel PROspector)to pre-enrich Toxoplasma gondii lysate to capture five distinctsubproteomes. [Note: NuGel PROspector beads are now part of theNRicher™ platform.]. When comparing the 5 differentsubproteomes, there is clearly different selection biases amongst the5 surface chemistries. Also, many of the proteins observed from theNRicher™ beads, were not observed in the Ion exchangefractions demonstrating the importance of combining different modes(ionic, hydrophobic, etc.) of separation to alter selectionproperties, and consequently improving overall proteome coverage.



Efficienciesgained in targeted serum proteomics using NRicher Beads –simplified and diversified workflows for sub-proteome and biomarkerenrichment – Poster HUPO World Congress 2024

AfterNRicher™ sample prep, target peptides have highly enhancedspectral signal. NRicher™ sub-proteome enrichment canminimize acquisition time, collectively improving overall throughput,cost, and productivity. Specific target peptides that reportfunctional PTMs and amino acid variant regions promise insights andpotential multiplex biomarkers for disease.

https://www.biotechsupportgroup.com/v/vspfiles/tem...



Wan,C., Borgeson, B., Phanse, S. et al. Panoramaof ancient metazoan macromolecular complexes.Nature 525, 339–344 (2015). hXps://doi.org/10.1038/nature14877

Sixdifferent NRicher™ beads (described with an old tradenamePROspector) were used as an enrichment step in the overall workflow;about twice the number of observations and annotations becamepossible. This further validates that the sub-proteome biascharacteristics of the NRicher™ surface chemistry platformcan simplify complex proteomes into enriched sub-proteomes withefficiencies suitable for deep functional proteomecharacterization.



Whitepaper- NRicher™: A Low Abundance Proteome Enrichment Platform WithSeamless Integration of On-Bead Digestion

TheNRicher™ Advantage is described: • Consumable chemically derivedNuGel™ beads, species agnostic as they are not derived fromantibodies • Does not require any specialized instruments, just astandard microfuge • Use of bead cocktails allows for one, ratherthan multiple LC-MS analyses • Functionally active sub-proteomesafter separations, for any orthogonal functional, enzymatic, orimmunoassay analysis

https://www.biotechsupportgroup.com/v/vspfiles/templates/257/pdf/BiotechSupportGroup-NRicher-Whitepaper.pdf



NRicher: Family Specific Enrichment For Targeted Proteomics – Poster USHUPO 2024

Theneed for new biomarkers to support personalized healthcare, hasfostered numerous proteomic innovations. Still, a number ofchallenges remain. One is the preponderance of high abundanceproteins and, concurrently in targeted proteomic workflows,efficiency and consistency in quantifying target peptides fromdifferent sample cohorts. This is in part due to the changinglandscape of proteins/peptides not associated with the selectedtargets. A solution for both these challenges is now availablethrough a suite of products called NRicher .

https://www.biotechsupportgroup.com/v/vspfiles/templates/257/pdf/NRicher%20poster%20small.pdf
